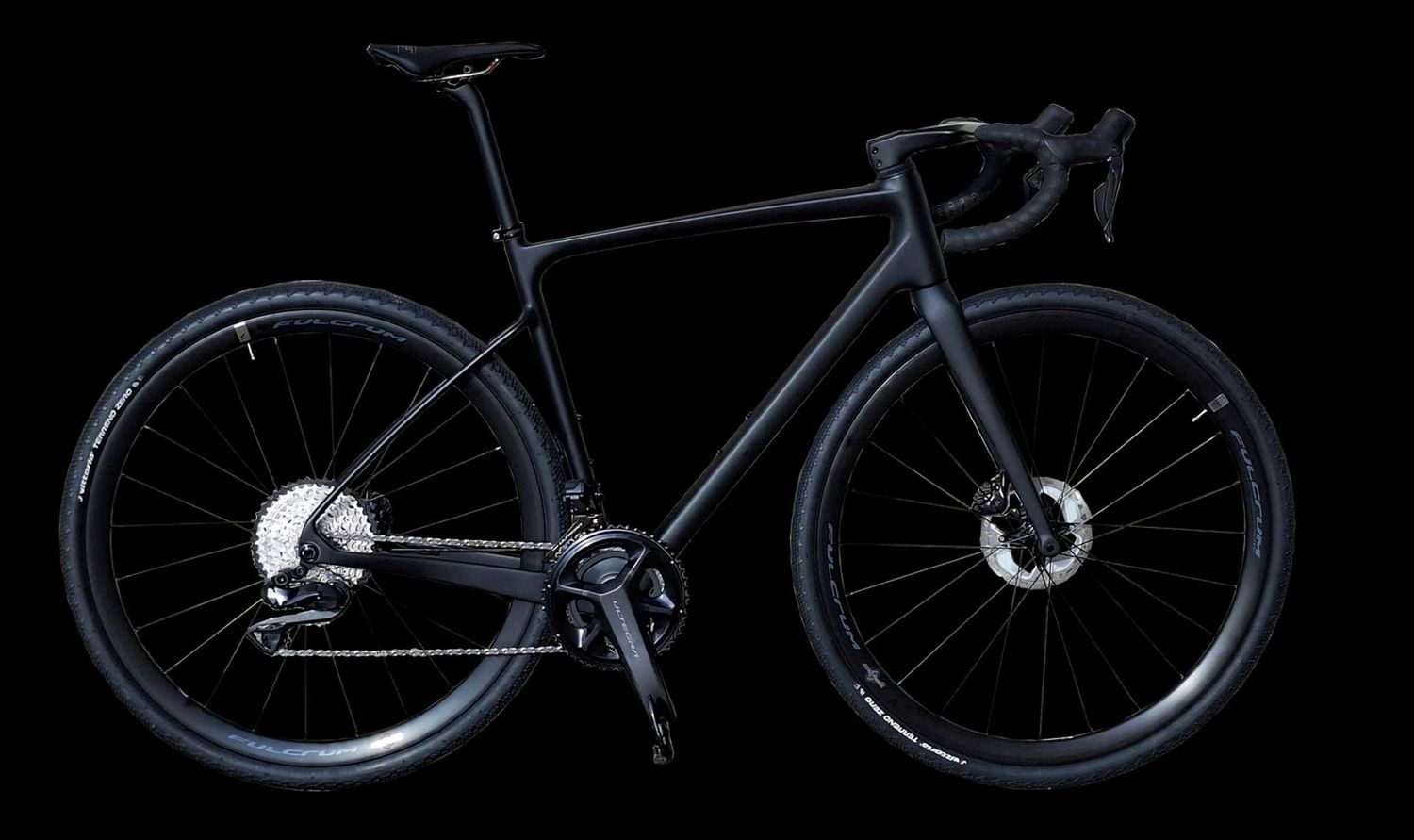

Super Endurance L
built one by one / Einzelmontage
setup road: weight / Gewicht 7.585g
| weight setup | road |
| frame Super Endurance SL | 950 |
| fork allroad | 420 |
| ultegra 12s Di1 | 2777 |
| wheel Fulcrum Soniq | 1895 |
| tire road Pirelli zero road 1 piece 270g | 540 |
| |
|
| inner tube piece 85g | 170 |
| saddle Prologo Zero | 210 |
| seatpost carbon | 185 |
| handlebar / stem carbon | 360 |
| handlebar tape | 35 |
| headset bearings | 45 |
| no pedals | - |
| 7585 g |
setup gravel: weight / Gewicht 8.149g
| weight setup | gravel |
| frame Super Endurance SL | 950 |
| fork allroad | 420 |
| ultegra 12s Di1 | 2777 |
| wheel Fulcrum Soniq | 1895 |
| |
|
| tire gravel Pirelli cinturato 1 piece 551g | 1102 |
| inner tube piece 85g | 170 |
| saddle Prologo Zero | 210 |
| seatpost carbon | 185 |
| handlebar / stem carbon | 360 |
| handlebar tape | 35 |
| headset bearings | 45 |
| no pedals | - |
| 8149 g |
groupset Sram or Shimano
Shimano, wireless shifters, small rear and front derailleur (external battery), various tiers with long market life and compatibility
Sram
Integrated derailleur batteries, front and rear derailleur battery easily changeable when empty, for riding home comfortably.
color design
one color design
any color
optional
accent color LOGO CARPE DIEM
or individual lettering
why a single-color frame design
A single-color road bike is often preferred. It offers timeless aesthetic, saves 100g to 200g of extra paint weight. It is highly versatile: riders can effortlessly match their bike to any cycling kit or change the aesthetic using colorful accessories like bar tape and bottle cages. A single-color design is classy, rarely looks dated. Intricate multi-color or branded patterns fall out of fashion quickly when the brand appearance (or status) changes.
wheelset / Laufräder
Fulcrum
Racing 6
Soniq AL
Wind 40
tires / Reifen
road / Straße
Pirelli Zero Road 28 mm (optional 30 mm, 32 mm)
gravel
Pirelli Cinturato 35 mm (optional 40 mm)
inner tube Pirelli Smartube
feels like tubeless, but no mess when changing tires on road
saddle / Sattel
Prologo
choose long or short, large or narrow, flat or modulated, light weight or longevity
Wähle lang oder kurz, breit oder schmal, flach oder moduliert, leicht oder langlebig.
chain waxed or lubricated
waxed chain, less mess when you have a mechanical on road, no pollution, looks always clean
frame details
geometry: endurance
bottom bracket T47 68mm
headset bearings 52.0 mm / 7.5mm
internal cable routing
compatible with AXS, Di2
seatpost 27.2 mm
seatpost lock: collar
disc rotor size 160 mm
tire size road 28, 30, 32 mm
gravel 35, 40, 42 mm
size chart / passt das Rad?
Check the size chart for a rough idea if the bicycle fits. Feel free to contact me for detailed advice.
Anhand der Größentabelle können Sie grob abschätzen, ob das Rennrad passt. Sende mir eine Nachricht für detaillierte Planung.
| size |
cyclist |
|
|---|---|---|
| S - 48 |
160 - 172 | |
| M - 51 |
170 - 177 | |
| L - 54 |
174 - 182 | |
| XL - 57 |
179 - 186 | |
| XXL - 60 |
180 - 195 |
geometry
higher stack, space for up to 42 mm tires
| s | m | l | xl | xxl | |
| 48 | 51 | 54 | 57 | 60 | |
| st | 460 | 490 | 520 | 550 | 580 |
| ht | 110 | 130 | 155 | 180 | 200 |
| stack | 521 | 543 | 571 | 595 | 614 |
| reach | 356 | 365 | 378 | 388 | 403 |
| top tube | 515 | 531 | 547 | 570 | 590 |
st = seat tube lenght / Sattelrohrlänge
ht = head tube length / Steuerrohrlänge
top tube / Oberrohrlänge
