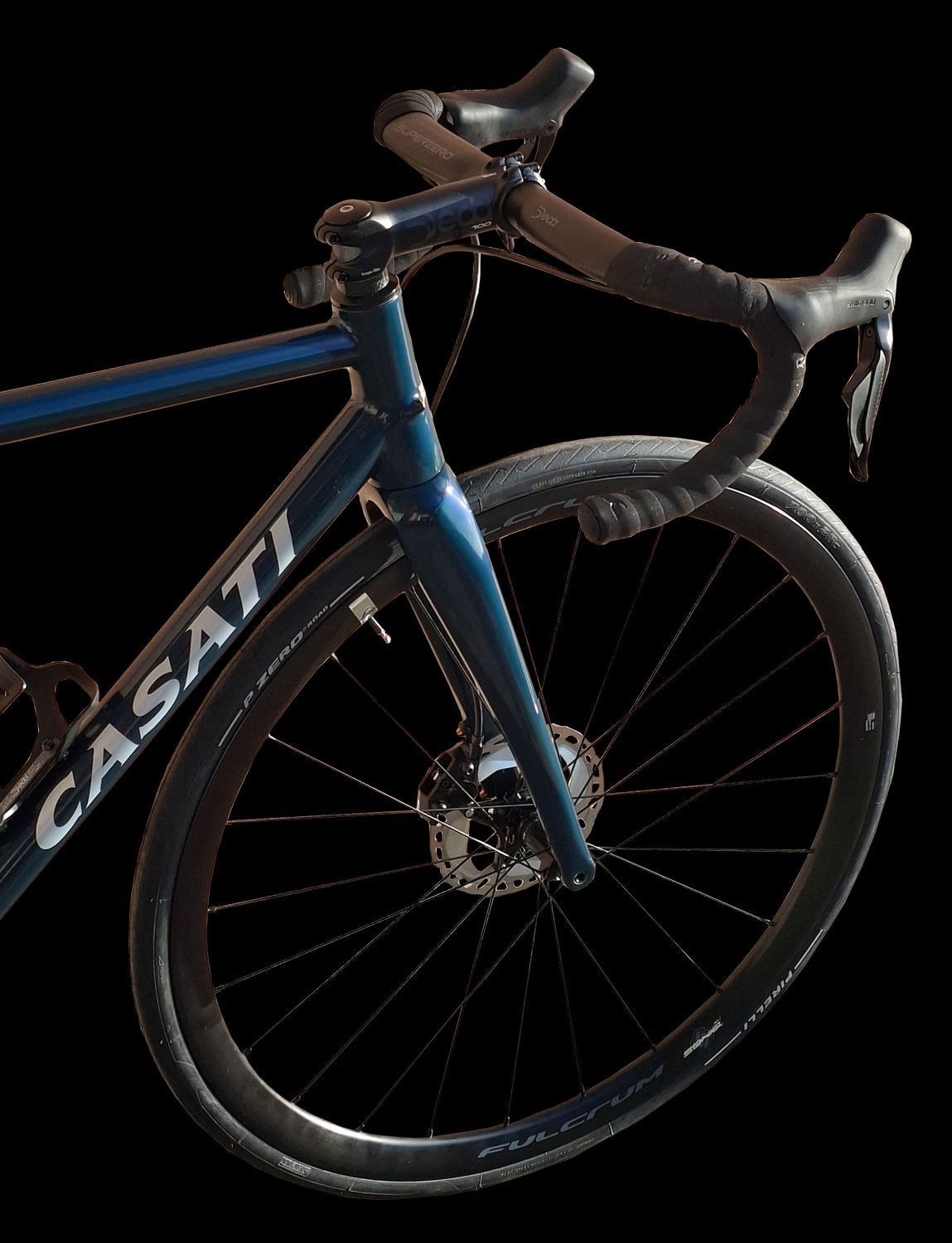

Casati Espresso Road
Casati Espresso
Blend of classic elegance and modern performance with Casati Italian Handmade Steel Road Frame. Crafted by Massimo and Luca Casati in Lombatdy/Italy, this frame embodies a rich cycling heritage and delivers a sublime steel frame feel.
Handmade in Ornago/Italy, quality and timeless craftsmanship from experienced Italian frame builders.
Premium Columbus Spirit steel tubing, renowned for its incredible ride quality, road-dampening comfort, and durability.
Stunning Finish: Presented in a deep, captivating Blue Green Metallic paint, offering a head-turning, shimmering aesthetic that shifts with the light.
Engineered for Simplicity & Performance. Casati has designed this frame to make cockpit maintenance simple with external brake cable routing, this frame ensures hassle-free servicing, allowing for quick and easy adjustment or replacement of your cockpit components.
frame design
- tubeset Columbus Spirit
- fork Columbus Futura
- fillet brazed
- cataphoresis anti corrosion treatment
- bottom bracket T47 68mm
- headset bearings 40 mm - 51.8 mm - 8mm
- thru axle front 100*12mm / rear 142*12mm
- cockpit disc brake line external cable routing
- frame disc brake line internal cable routing
- compatible with chain rings 2 x ..
- compatible with Di2 / AXS / mechanical
- seatpost diameter 27.2 mm
- integrated Casati seatpost lock
- front derailleur braze on
- disc rotor size rear 140 mm or 160 mm / front 160 mm
- weight frame 1750g (size 54cm), fork 430g
- frame size 53 cm
- max tire size 28 mm
color design
- green blue metallic, gloss
groupset
- Espresso Spirit
assembled with Sram Force E1 AXS 12s - Espresso Spirit
assembled with Campagnolo Super Record DB, 12s
chain
- lubricated | optional waxed
easier cleaning. cleaner working when having a mechanical on road, no oil pollution
wheelset
- Fulcrum Soniq AL 23
tires
- Pirelli P Zero Road 28 mm (optional 30 mm, 32 mm)
- inner tube Pirelli Smartube
feels like tubeless, but no mess when changing tires on road
saddle
seatpost
- Deda Zero 100 setback 0 mm / 12 mm
headset bearings
- steel Deda DCR
components custom setup possible
groupset, tires, saddle, 2 piece Deda stem and handlebar
